The Process – DC Shorts Film Awards

>

The DC Shorts Film Festival – the largest short film event on the East Coast. This is the festival’s 9th year, they are showing 140 films from 27 nations — and expect hundreds of filmmakers and thousands of audience members to mix, mingle and explore the art of short cinema. The festival is the largest audience-driven collection of short films in the USA. The DC Shorts Film Festival turns the spotlight on truly independent short films, created by new and established filmmakers in an era when the art of filmmaking is opening to all.

The Washington Glass Studio makes the glass awards given to the winners of the competition, and the steps to make the award are the subject of today’s posting.



Based on the film festival logo, the imagery is drawn in frit powder onto flat glass sheets.



The pattern made of glass powder is kiln-fired to the glass surface.

Rob Kincheloe sets up a precise angle within the kiln for the previously fired glass to slump over.

The slump drop of the glass creates one piece award that has the base integrated.



Audrey Wilson rubs enamel paint into the white kilncast film reels to bring out the texture of the glass.



The slumped awards are ready for the cast glass elements to be attached with UV glue.

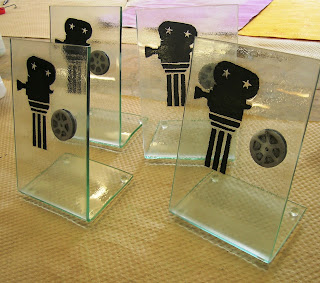

The production of the awards fill the tables of the studio. The finished awards are boxed and mad ready for delivery to the festival HQ.

When you go to the DC Film Festival gala award receptions – be sure to cheer for the awards themselves!

DC Shorts is a project of the DC Film Alliance. The DC Film Alliance serves and strengthens the media arts in the greater Washington DC region by serving as a bridge between the myriad of media arts organizations in the Washington, DC metropolitan area.

The Process: National Geographic’s Environment Award

>This posting is the first of a new feature for the Washington Glass School blog: The Process’.
The occasional series will present a photo documentation of a project from start (or at least when we remembered to get a camera going) to finish, highlighting the steps, process and techniques involved. Mistakes, dramas, and screw-ups will be magically deleted from the documentation postings, naturally.

Our first of the series is a focus on the making of National Geographic’s newest award – the ‘National Geographic Arts Ambassador for the Environment Award’ . The recipient for the inaugural award is musician Jack Johnson.

Uber-mellow singer-songwriter-surfer-filmmaker Jack Johnson has dedicated himself to environmental causes, including educational initiatives and promoting eco-friendly touring in the music industry.

Musician and environmental activist Jack Johnson was to receive the newly created “Arts Ambassador for the Environment Award,” presented to an individual in the entertainment field who has demonstrated leadership in environmental and cultural conservation by elevating issues of sustainability and inspiring audiences to care about the planet. Jack Johnson grew up surfing and playing guitar in Hawaii. He released his first album in 2001 and, in the last ten years, has released 5 more albums that have sold over 20 million copies worldwide. In 2003, Jack and his wife Kim founded the Kokua Hawaii Foundation and Kokua Festival to support environmental education in Hawaii’s schools and communities. In 2008, Jack donated 100% of his tour profits to establish the Johnson Ohana Charitable Foundation, an endowment founded by Jack and Kim Johnson to support environmental, art and music education worldwide. These tour profits, along with Johnson’s personal charitable activities, have resulted in millions donated to charity since 2001.

In keeping with the environmental conscious theme, the National Geographic Society asked for an award that was made from recycled glass, and a number of designs were studied.


As the award was to be yearly, the concepts had to allow for art ambassadors that worked in areas of interest such as “oceans” or “forests” or “wildlife” and be able to relate equally to those themes. Early on, a globe shape was favored by the National Geographic award committee. Recycled float (window) glass was to be cast using the lost wax process. The National Geographic committee stipulates that the cast glass globe be removable, and options for the support base are explored.

The Process:

Spraying the clay original with a mold release agent.


Pouring the rubber mold compound around the original clay form.


After setting up – preparing to cut open the rubber mold and remove the clay form. After removal of the clay, melted wax is poured into the rubber mold, and a wax copy of that form is removed.


The wax original.


The wax original is coated with with layers of a plaster/silica mix, building up the form until a solid covering is achieved.


The plaster/silica form is allowed to set up. Once hardened, the wax is melted out – the essence of the ‘lost wax’ process.


Checking the mold for any wax residue.


Recycled float glass is cleaned and made ready for casting.


The molds are loaded into the electric kilns and glass placed into ceramic pot reservoirs. The glass globes go through a six day annealing cycle.


After the glass is cooled, the forms are removed from the kilns.


The molds are broken open, being mindful of the glass contained within.


Chipping away at the plaster mold.


The glass is cleaned and coldworked. Rough spots are ground and polished to a shine.


Robert Kincheloe evaluates the level of shine on the glass globe continents.


While the cast glass globe is being coldworked, the base for the globe and the award nameplate is being created. A custom ceramic mold is shaped and fired. A flat blank made from recycled glass is fused and made ready to slump into the ceramic mold.


The glass base is fired in the kiln and coldworked to receive the glass globe.

The base is fitted with a clear gasket to prevent chipping of glass.


Studio photos of the award and of the evening were promised by National Geographic – we will post once we get the shots!

About the National Geographic award night:

The theme of the National Geographic’s inaugural “Evening of Exploration” celebration was “Oceans,” and the event was attended by an all-star cast of explorers and other luminaries, including newly appointed National Geographic Explorers-in-Residence filmmaker James Cameron and marine ecologist Enric Sala, as well as other Explorers-in-Residence who presented the evening’s awards: oceanographer Robert Ballard, marine biologist Sylvia Earle, wildlife filmmakers Dereck and Beverly Joubert and population geneticist Spencer Wells.

In keeping with the environmental theme – the appetizers were made from “invasive species” – like snakehead fish sushi.

Besides Jack Johnson, the other honorees included: Environmental anthropologist Kenny Broad and the late underwater photographer Wes Skiles were named “Explorers of the Year,” a new award presented in recognition of their extraordinary achievements in exploring and documenting the Blue Holes of the Bahamas in 2010. The National Geographic “Chairman’s Award” was presented to IBM for significantly advancing knowledge of the world through its research partnership with National Geographic on the Genographic Project, which is mapping the migratory history of humans.

The master of ceremonies was Wolf Blitzer, CNN’s lead political anchor. Following the awards presentation, Johnson performed songs for the crowd.

Jack Johnson performing at the National Geographics award gala.

Proceeds from the evening will benefit National Geographic’s Explorer programs, comprising the Explorers-in-Residence, Fellows and Emerging Explorers. The “Evening of Exploration” was the culmination of the two-day National Geographic 2011 Explorers Symposium, an annual event at which National Geographic Explorers-in-Residence, Fellows, Emerging Explorers, grantees and others affiliated with National Geographic gather to share findings of their research and fieldwork and take part in panel discussions.
